Beacon and automatic station ID

Auto-ID keeps every transmission identified, and the beacon keeps your station calling — or sending a picture — on a timer while you are away.

Automatic station identification

On by default: nothing leaves your station unidentified.

  • Text (broadcast and directed) gets “de YOURCALL” appended unless your callsign is already in the message.
  • Pictures always carry the callsign stamp — even if you’ve turned the decorative overlay off.
  • If ID is on but no callsign is set, the app warns you rather than sending anonymous transmissions.

The toggle lives in the Transmit options, and the choice is remembered.

The beacon

The beacon re-transmits on a timer so your station keeps calling while you make tea.

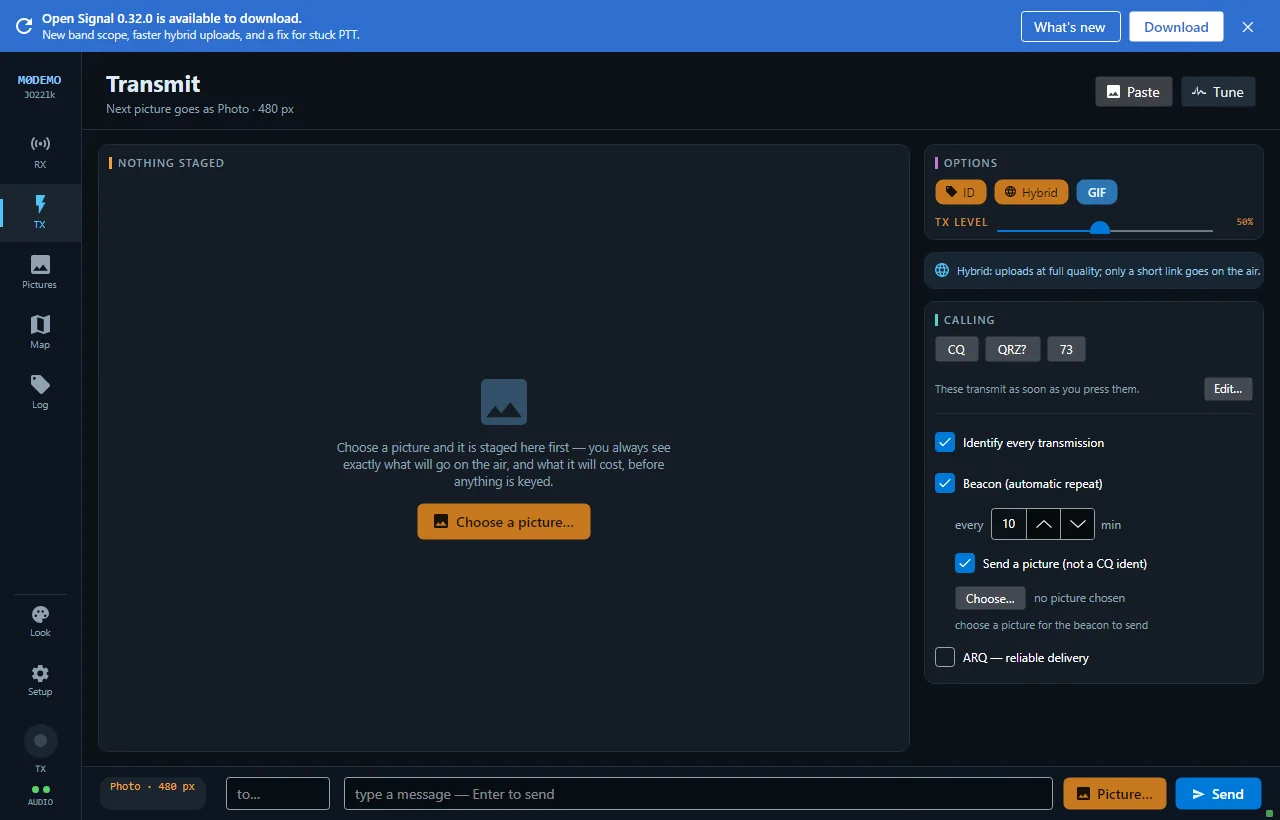

The beacon options in the Transmit settings, with the enable toggle, interval spinner and the choice between a CQ ident and a chosen picture
Beacon options
  • What it sends: a CQ ident, or a picture you choose (“send a picture” + Choose).
  • Interval: configurable, one-minute floor.
  • It behaves: the beacon stands down while you’re transmitting something else and while a picture is coming in — it will never key over a reception. Auto-ID stamps whatever it sends.

Enable it in the Transmit options; the interval spinner is next to the toggle. A beaconing station pairs nicely with reception reports — you’ll see exactly who copied your beacon picture and how well.
